Silver Tulle

Properties

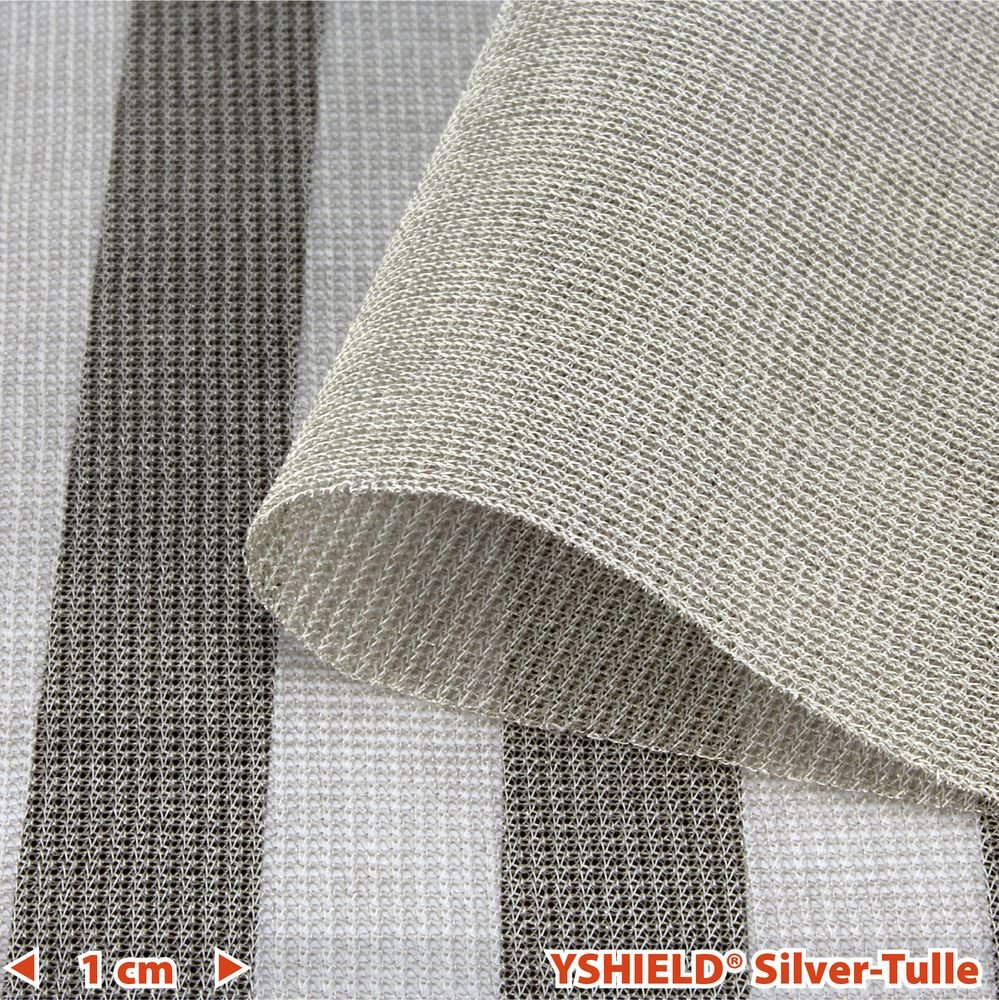

SILVER-TULLE is a semi-transparent strong silvered knit fabric for the protection against high-frequency (HF) and low-frequency radiation (LF). Typical application as net curtain, as room divider in laboratorys, medical practices, etc. and due to the highest washability it is good as a bed canopy.

Special features:

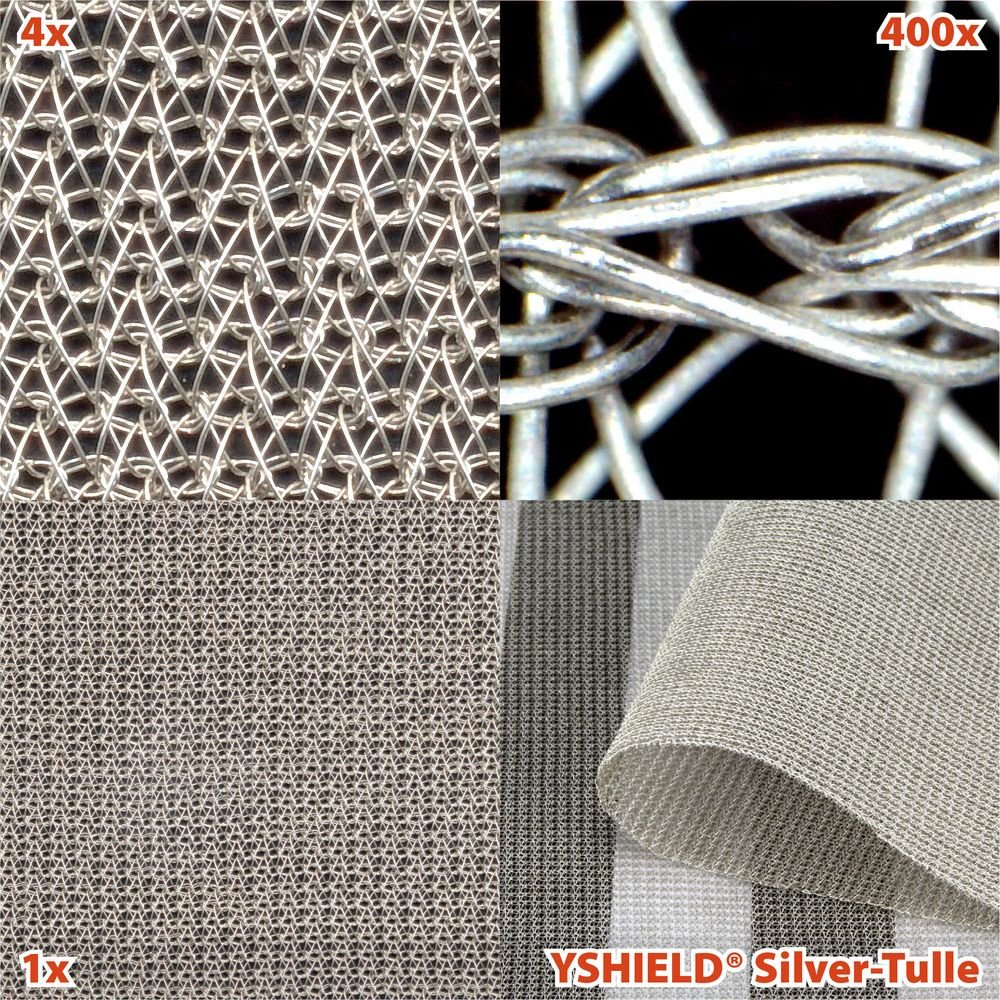

1) Due to its strong silvering, SILVER-TULLE is very stable and Does not loose its screening attenuation during washing or movement.

2) This fabric is hard to sew accurately, because it‘s stretchy and pulls out of place easily when you try to sew on it. Please note that customized curtains are difficult to sew dimensionally stable!

• High transparency at very high screening attenuation

• Contactable (groundable) to shield LF electric fields

• Textile similar characteristics: Washable, easy to process. Exception: Do not iron.

• Quality grade: Very high

Silver products

• Silver products discolour with time and often already have discolorations right from the start. If you don’t want to accept discolorations, please choose Swiss-Shield® fabrics.

• Silver fabrics have a limited durability, depending on the frequency and mechanics of movement.

• Our silver fabrics do not contain any nano silver, but a thick metallic silver coating.

Technical data

• Width: 130 cm, +/- 2 cm

• Length: Available by the meter

• Attenuation: 48 dB

• Color: Silver-beige.

• Raw materials: 80 % nylon, 20 % silver

• Weight: 40 g/m²

• Dimension stability: +/- 1 %

• Surface conductivity: 0.8 ohm / inch (2.54 cm)

Care instructions

• Gentle cycle at 30°C

• No ironing

• No drying in tumble dryers

• No bleaching

• No chemical dry-cleaning

• Wash only with our special washing detergent TEXCARE, without enzymes or bleaching agents

Shielding attenuation & Grounding

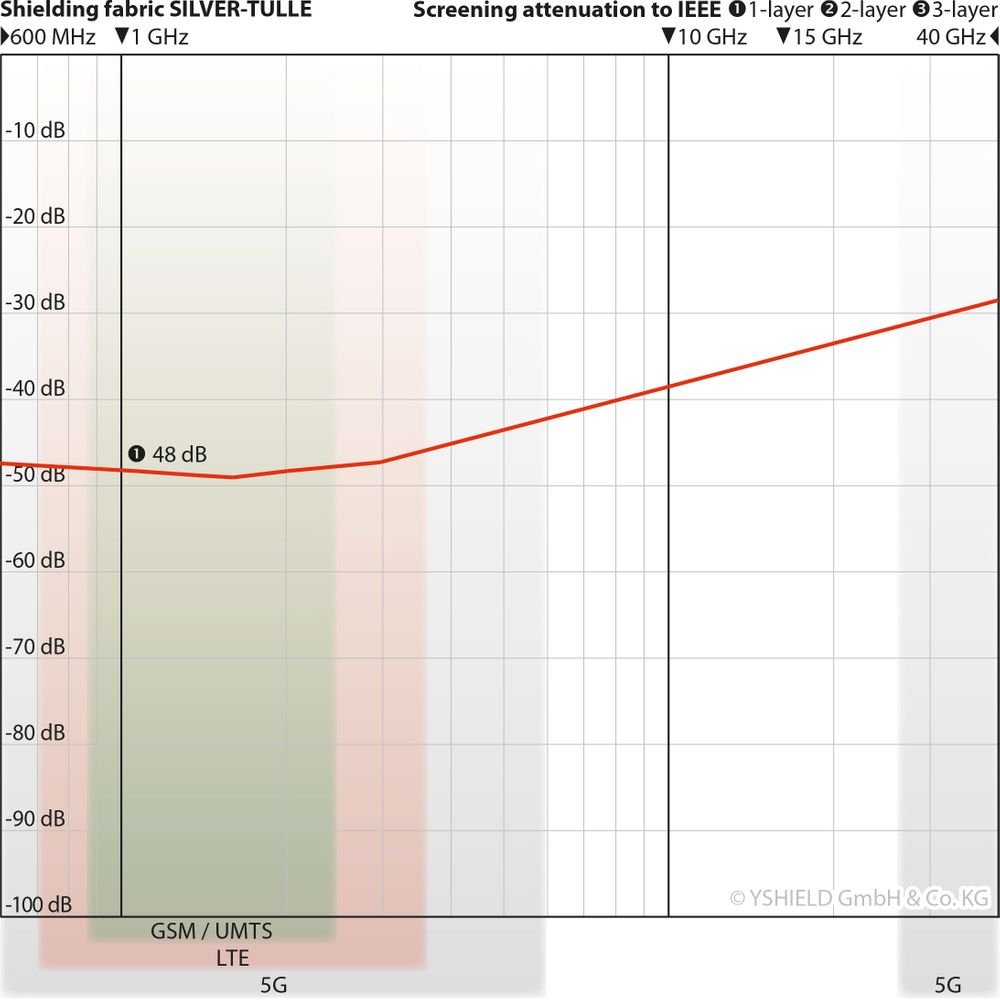

• This product shields high frequency electromagnetic fields (HF). The indicated dB-values apply to 1 GHz, view chart for other frequencies. Measurement from 600 MHz to 40 GHz according to standards ASTM D4935-10 or IEEE Std 299-2006, view laboratory report and expert report above.

• This product with an electrically conductive surface shields low-frequency alternating electric fields (LF). For this purpose a grounding is necessary, i.e. an integration into the functional-equipotential bonding (FEB), please find suitable grounding accessories under "Grounding".

Double checked up to 40 GHz

We have already invested in our own professional EMV laboratory years ago. We not only use it to create our own laboratory screening reports but also to check each batch daily. Additionally, we have all our products checked by an independent, renowned expert. Double checked for twice the safety.

Pricing

Please email for a quote, if buying more than 2m, as prices will be reduced considerably.
