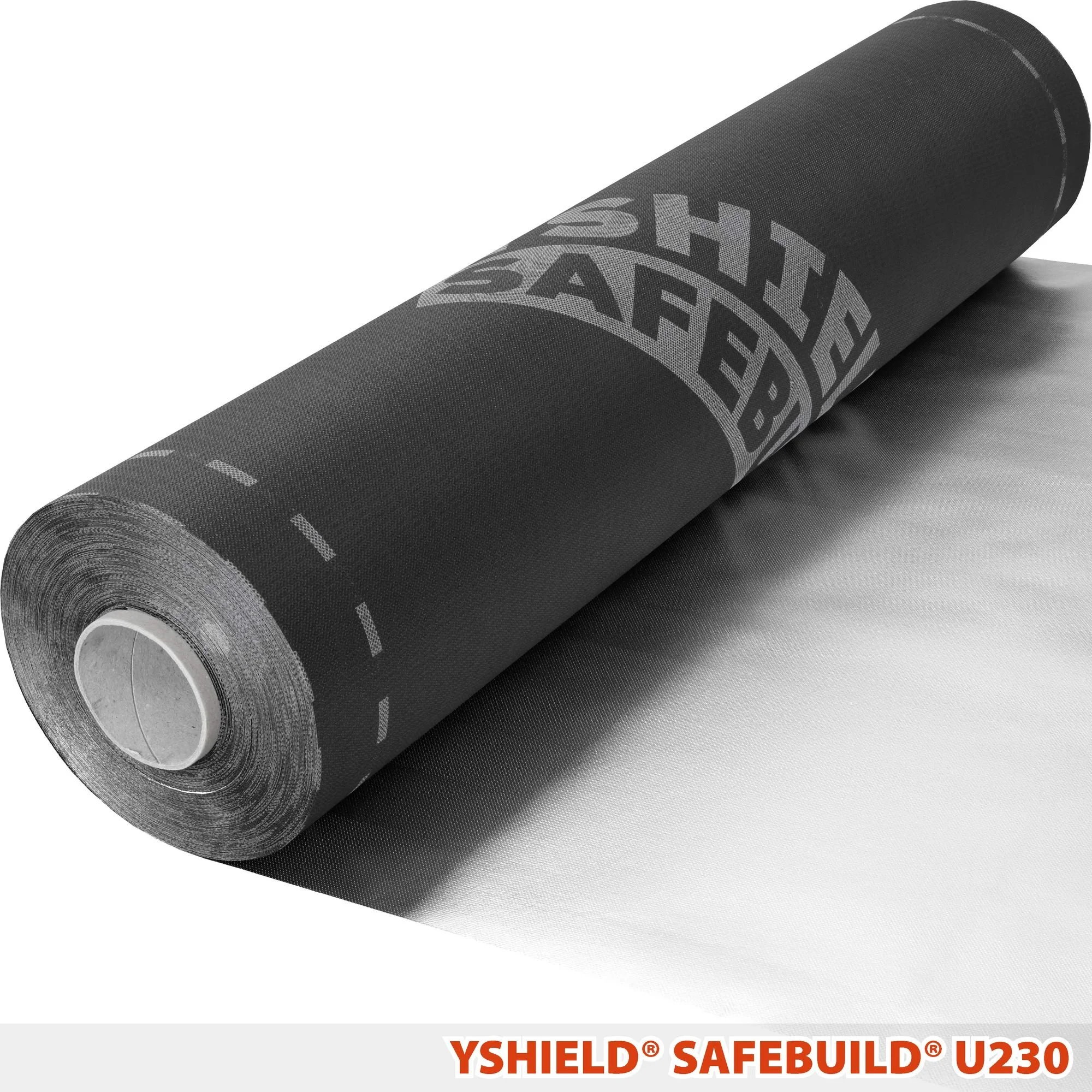

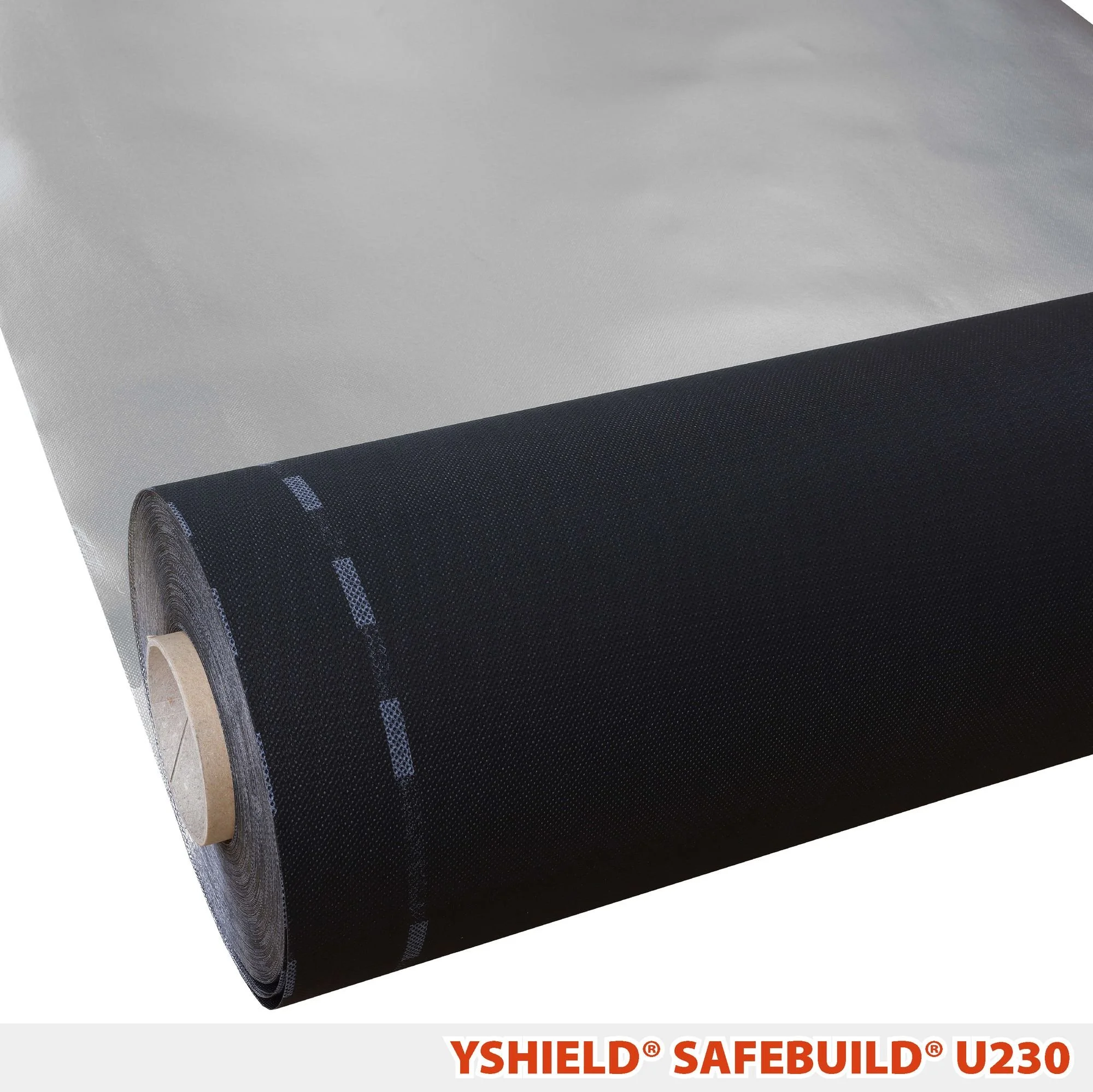

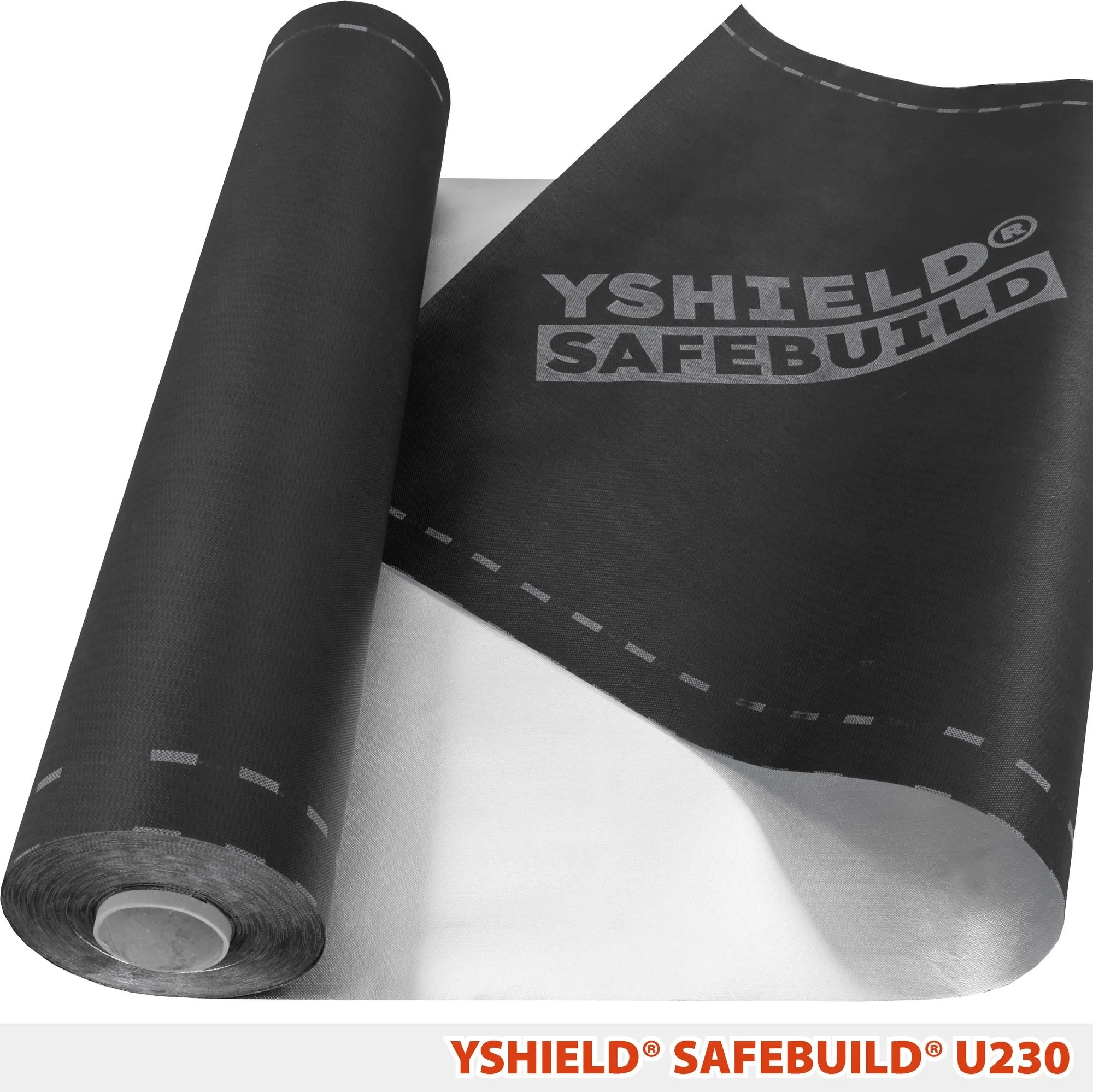

U230 Shielding Membrane

$107.00

Shielding four-layer underlay membrane for roofs, facades and drywall construction. Highly permeable to water vapor. 111 dB shielding power. For exterior and interior use. Width 90 cm.

Ideal for high frequency (4G, 5G, wifi, etc.) as well as low frequency (electrical fields from cabling) shielding.

Note, that the price decreases rapidly with the amount of material you order, as shipping and customs processing decrease. Feel free to ask for a quote, but calculate an overlay when working out your area, to insure conductivity.

Quantity:

Shielding four-layer underlay membrane for roofs, facades and drywall construction. Highly permeable to water vapor. 111 dB shielding power. For exterior and interior use. Width 90 cm.

Ideal for high frequency (4G, 5G, wifi, etc.) as well as low frequency (electrical fields from cabling) shielding.

Properties

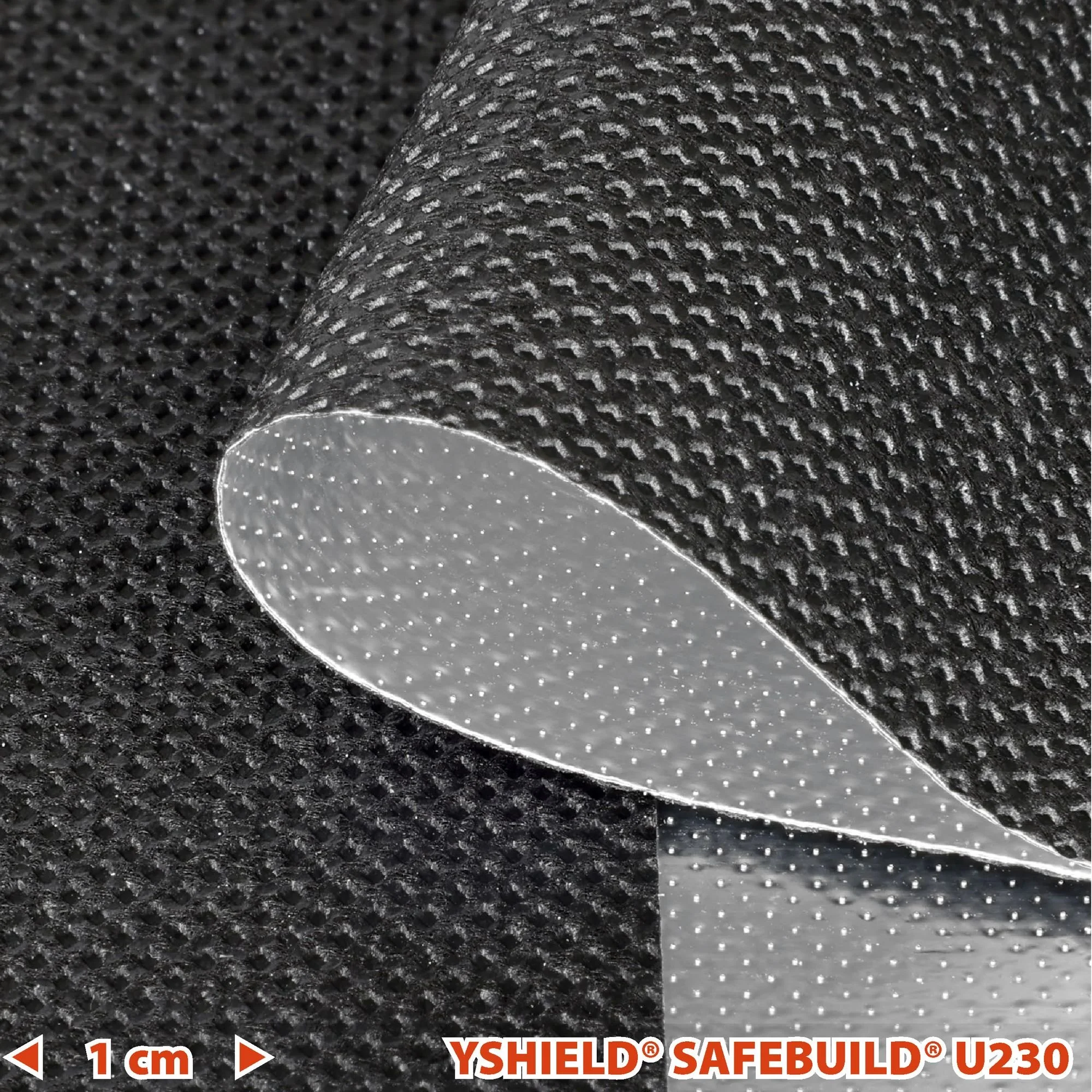

Our U230 shielding underlay membrane is a four-layer membrane with a microneedled aluminum foil. The micro-needling with 200,000 tiny holes per square meter makes the material highly permeable to water vapor. The micro-holes are so small that they have no influence on the sensationally high shielding attenuation of 111 dB - one of the highest shielding attenuation values we have ever had in a series product. Produced in-house at YSHIELD in Germany.

Application

The four-layer U230 underlay membrane can be used universally in exterior and interior areas for roofs, façades and drywall construction. The membrane optimizes the wind tightness of the construction and stops rain. The aluminium foil protects against the penetration of warm air in summer and cold air in winter.

Technical data

Width: 90 cm
Length: by the meter / 50 m roll
Shielding attenuation: 111 dB / surface conductivity: 0.0018 Ohm (square resistance)
sd value: 0.034 m = very high water vapor permeability
Grammage: 230 g/m² / Thickness: 0.45 mm
Color: Black / Silver
Material layers: PP fleece / diffusion-open functional film / PP fleece / micro-needled aluminum foil

CE Declaration of performance according to EN 13859-1:2010; EN 13859-2:2010

Fire behavior: E
Water resistance: W1
Tensile strength: 210-270 N/50 mm
Tear strength: 150-160 N
Temperature resistance: -40°C to 80°C
Hazardous ingredients: Not included
sd value: 0.034 m
VOC emissions: 0 (class A+)

Processing

The professional application of a 1) water vapor diffusible, 2) waterproof, 3) reflective membrane for roofs, facades and drywall construction is sufficiently described in the literature and is well known to your craftsman, planner and architect. For the best shielding result, the membranes must always be applied overlapping, without a gap, and holes for fastening must be kept as small as possible. To protect against corrosion, the aluminium side must always be laid towards the inside of the house and the brand imprint should be visible.

Grounding

This product with an electrically conductive surface has to be integrated into the functional-equipotential bonding (FEB). Please find suitable grounding accessories under "Grounding". With this product, the aluminum side must be grounded, GSX50 must be bonded on the silver side!

Shielding attenuation HF & LF

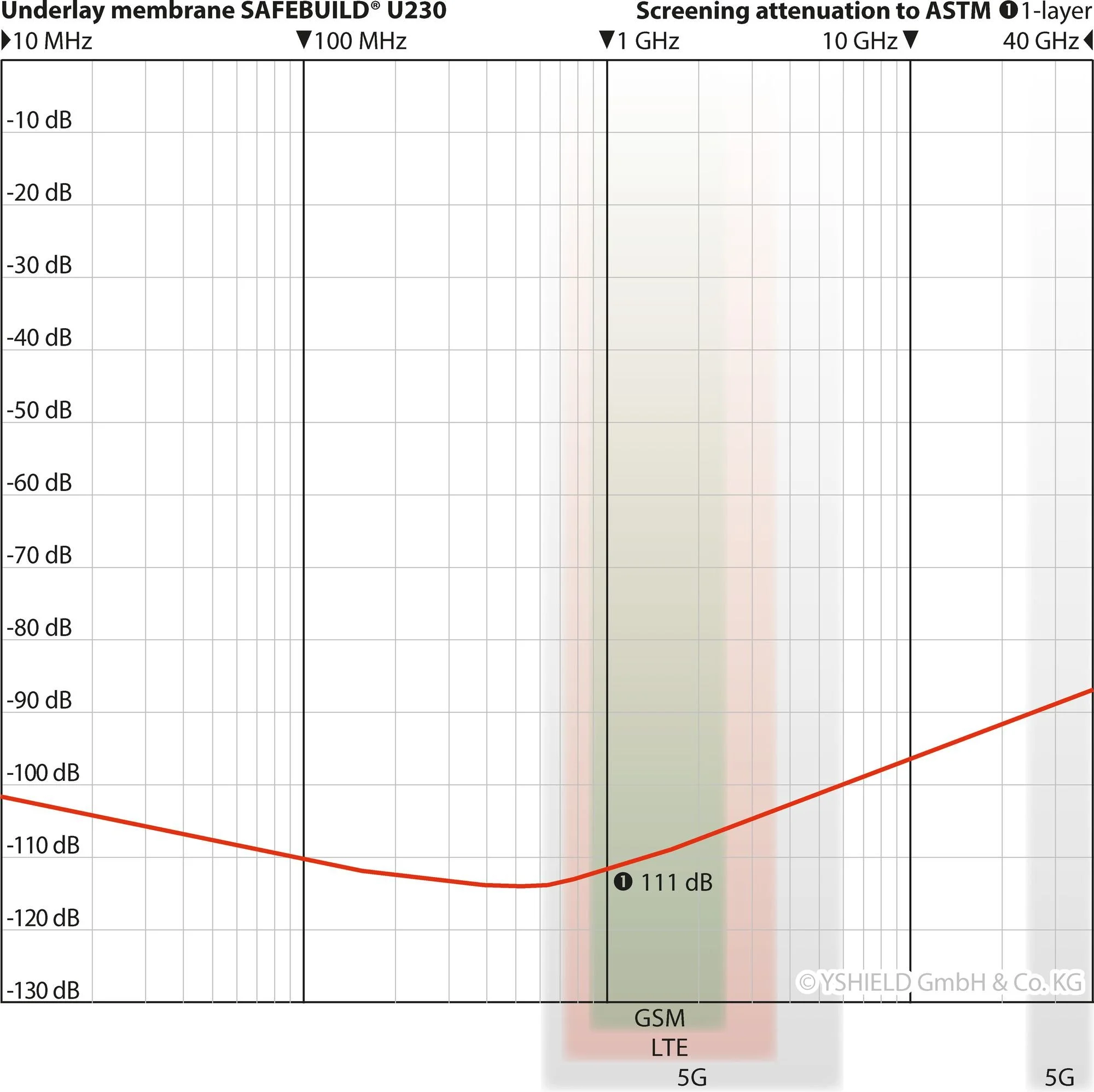

This product shields high frequency electromagnetic fields (HF). Unless otherwise stated, the indicated dB-values apply to 1 GHz. Measurement from 600 MHz to 40 GHz according to standards ASTM D4935-10 or IEEE Std 299-2006.

This product with an electrically conductive surface shields low-frequency alternating electric fields (LF).

Laboratory & expert report of shielding attenuation up to 40 GHz

We have already invested in our own professional EMV laboratory years ago. We not only use it to create our laboratory screening reports but also to check each batch daily. Additionally, we have all our products checked by an independent, well-respected expert. Double checked for twice the safety.
